Medium Truck Tires

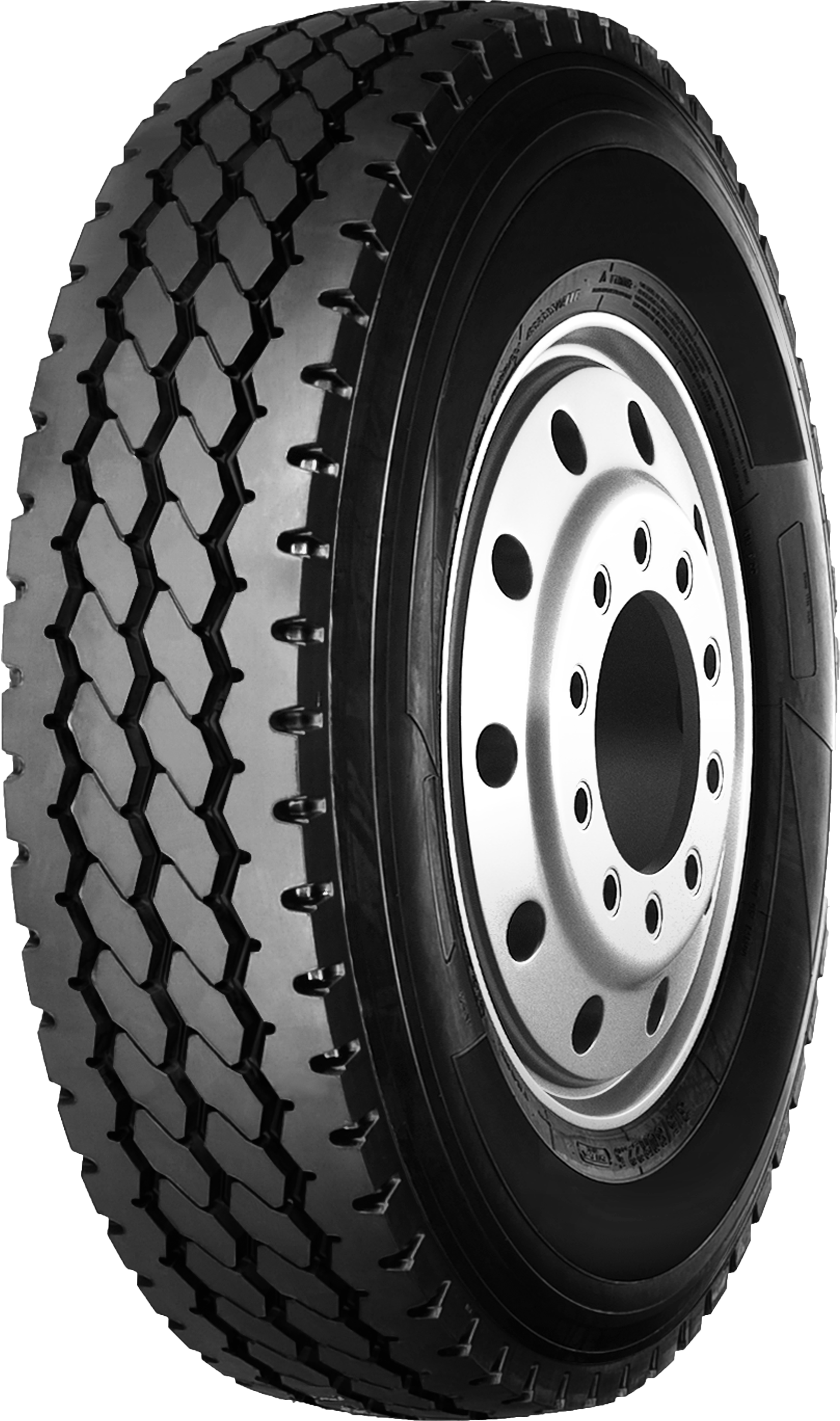

RT568 ALL POSITION

Design

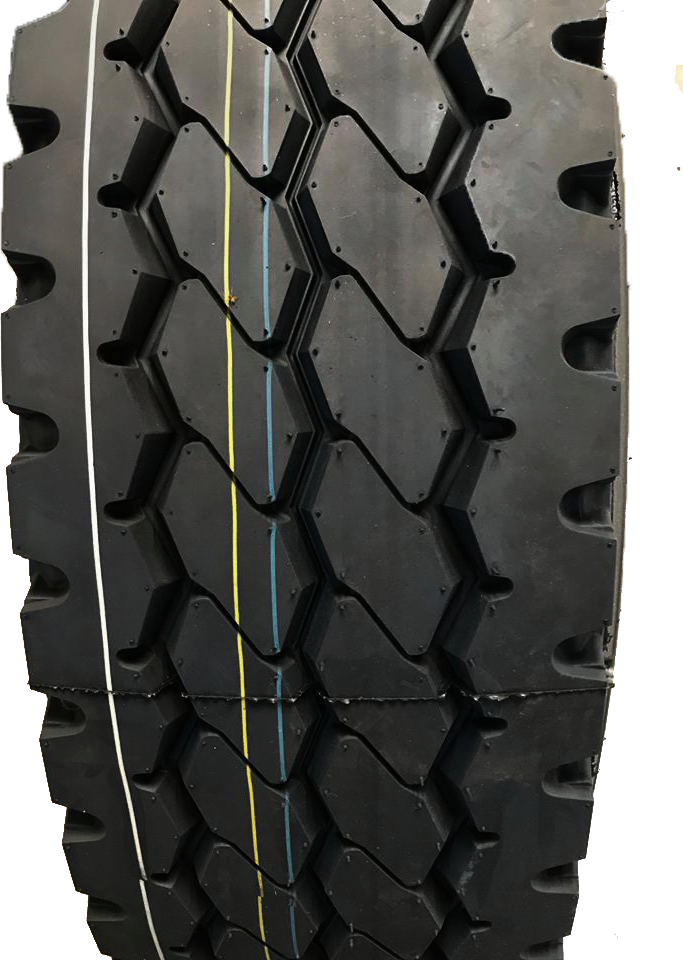

RT568 is an all-position service tread suited for off-road and construction applications. A zigzag tread pattern design reduces stone retention, while maximizing traction under all applications. Sidewall protectors are engineered to provide an enhanced level of protection to the casing. Applications in Dump Trucks/Trailers, Ready Mix Trucks, Regional Trucks/Trailers

features

Optimized pattern block design
Special shoulder design
Wide tread design with siping in tread and special compounded tire tread with Lylon cloth

benefits

Excellent driving force
Sustained endurance as the result of effectively heat dissipation shoulder design
Enhanced durability and excellent loading performance

TIRE SPECIFICATIONS

Size P.R. Loading Index Speed Rating TD  RIM   Applicable Rim Max Load (lbs) Pressure (Kpa) O.D. S.W.
Single Dual mm/32nds in.  in Single Dual Single Dual mm/in mm/in
7.00R16LT 14 118 114 L 11.0/14 5.50F 6.00G 110 110 2910 2600 775/30.2 200/7.8
7.50R16LT 14 122 118 L 12.5/16 6.00G 5.50F,6.50H 110 110 3305 2910 805/31.7 215/8.5
11R22.5 16 146 143 L 16.0/20 8.25 7.50,8.25 120 120 6610 6005 1054/41.5 279/11.0
12R22.5 18 152 149 K 16.0/20 9.00 8.25 135 135 7830 7160 1085/42.7 300/11.8
315/80R22.5 20 157 154 K 16.0/20 9.00 9.75 130 130 9090 8270 1076/42.4 312/12.3
